O-PIN connector
Revolutionary Patented Technology for IGBT Module Assembly
Transform your power electronics manufacturing with SM Contact’s revolutionary O-PIN connector technology. Our patented solution eliminates the costly defects and complex assembly challenges of traditional copper sleeve and press-fit connectors for IGBT modules, DBC substrates, and high-power applications.
Key Benefits:
- 140N pull-out resistance for superior reliability
- Zero pin breakage during assembly
- 4-week sample delivery with no tooling investment
- Automated bandolier packaging for seamless production
- ±1° maximum inclination control
What are O-PIN Connectors?

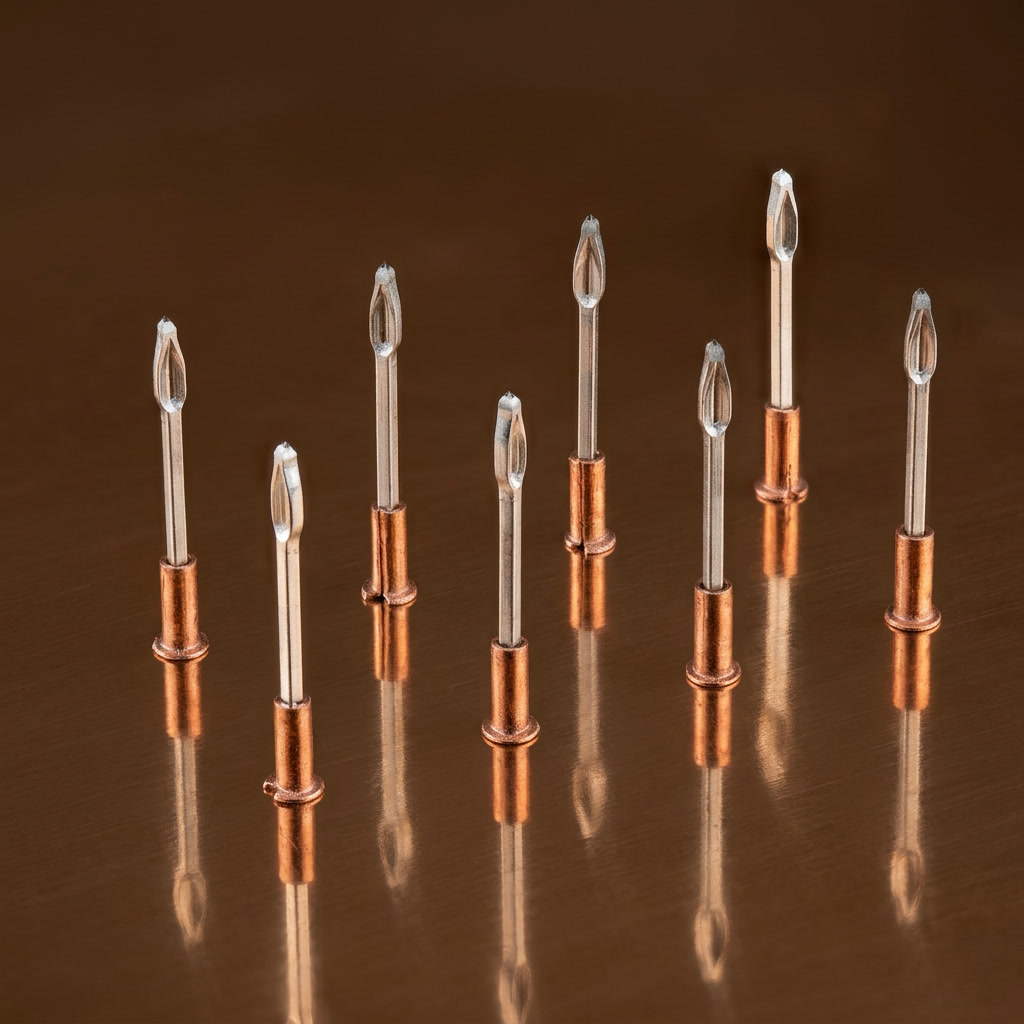

O-PIN connectors represent a breakthrough in power module connection technology for IGBT (Insulated Gate Bipolar Transistor) modules, power inverters, and high-current applications. Developed and patented by SM Contact, this innovative crimp-based terminal system solves the fundamental problems inherent in traditional insertion-based and press-fit connector technologies.
Unlike conventional copper sleeve connectors that require precise insertion forces exceeding 120N and complex multi-factor analysis, O-PIN connectors utilize advanced splice crimping technology for direct bonding to DBC (Direct Bonded Copper) substrates during reflow soldering processes.
Applications & Industries
Automotive
Automotive-grade connectors and insertion equipment for reliable, scalable production
Learn MorePower Electronics
High-performance connectors and insertion equipment for power and control systems
Learn MoreRobotics and Motion
Reliable connectors and insertion equipment for dynamic motion applications
Learn MoreThe Hidden Costs of Traditional Copper Sleeve Connectors
Traditional insertion-based connector terminals for IGBT module assembly create significant manufacturing challenges that impact your bottom line:
Complex Assembly Requirements:
- Multi-factor analysis needed (material compatibility, friction coefficients, substrate thickness variations)
- High-precision manufacturing tolerances driving up costs
- Expensive consumable components prone to assembly defects
- Equipment force settings exceeding 120N risk pin breakage
Quality & Reliability Issues:
- Unstable electrical connections leading to module failures
- Extreme tolerance sensitivity causing misalignment
- Pin slippage in high-current circuits
- Inclination-based scrap increasing production costs by 15-30%
Press-Fit Technology Limitations:
- Requires precise PCB hole diameter control
- Accumulation of assembly errors from multiple process steps
O-PIN Solution
Advanced Crimp Technology for Superior Performance
SM Contact’s patented O-PIN connector technology eliminates traditional pain points through innovative design:
Compression-Based Connectivity:
- Robust mechanical connection resistant to vibration and thermal cycling
- No risk of pin breakage during assembly (unlike 120N+ insertion force requirements)
- Consistent pin integrity across all units
- Superior electrical and thermal performance
Manufacturing Excellence:
- Higher repeatability in mass production
- Assured flatness of contact surfaces
- Single-process inclination control (±1° maximum vs. accumulated errors)
Cost-Effective Solution:
- Eliminates expensive precision insertion equipment
- Reduces scrap rates by eliminating insertion-related defects
- Lower consumable costs compared to copper sleeve terminals
- No tooling investment required for prototype samples
PRODUCTION BASED ON ULTRASONIC WELDING
Bandolier Packaging Innovation
Automation-Ready Design:
- Continuous strip format for pick-and-place machines
- Precise pitch control for automated indexing
- Compatible with standard SMT assembly lines
- Reduces material handling and eliminates packaging waste
Quality Benefits:
- Consistent orientation and positioning
- Eliminates individual component handling
- Reduces contamination risk
- Supports high-volume production environments
O-PIN vs. Traditional Technologies
| Feature | Copper Sleeve + Insertion | O-PIN Connectors |
|---|---|---|
| Assembly Force | 120N+ (risk of breakage) | Zero insertion force |
| Process Steps | Multi-step (sleeve + insertion) | Single reflow cycle |
| Inclination Control | ±3-5° (accumulated error) | ±1° (single process) |
| Scrap Rate | 5-15% | <1% |
| Tooling Investment | High precision required | None for samples |
| Setup Time | 8-12 weeks | 4 weeks to samples |
| Current Rating | Variable (60-100N) | 140N pull-out |
